Card 5c - Third Level Element Generation

KODE

KODE is the code GEN3RD (or –7) generates a 3D matrix of elements.

NC

NC is the number of elements in the C direction.

NDC

NDC is the element number increment in the C direction.

NDVC(I)

NDVC(I) is the I'th node number increment in the C direction.

MM

MM is the number of nodes in each element, which may be from 1 to 8, and must be equal to the number of nodes of the starting element.

Code example

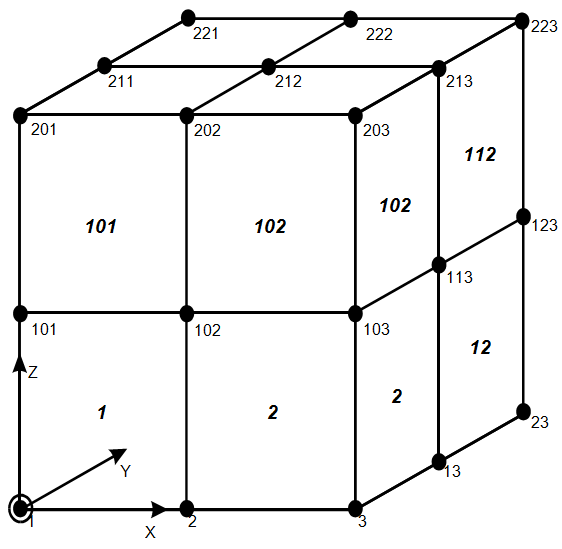

The following example generates 8 solid elements 1, 2, 11, 12, 101, 102, 111, 112.

 $ CARD 4 CARDS – GLOBAL CARTESIAN COORDINATE SYSTEM
 $ IS IN EFFECT.
 1 0 0 0
 $ STARTING NODE
 GEN 3 3 1 10 1 0 0 0 1 0
 $ CARD 4B GENERATES 3*3 = 9 NODES
 GEN3RD 3 100 0 0 1
 $ CARD 4C GENERATES 3*9 = 27 NODES
 –1
 $ CARD 5 CARDS. 8 SOLID ELEMENTS ARE GENERATED.
 1 SOLID M1 0 P1 1 2 12 11 101 102 112 111
 $ CARD5A STARTING EL.
 GEN 2 2 1 10 1 1 1 1 1 1 1 1 10 10 10 10 10 10 10 10
 $CARD5B 4 EL.
 GEN3RD 2 100 100 100 100 100 100 100 100 100
 $CARD 5C 8 EL.
